The Y6b was known as the workhorse of the Norfolk & Western railroad. Starting with locomotive #2120 in 1936, the Y6 class would become the final refinement of the 2-8-8-2 design, and the Y6b is considered the epitome of the compound mallet development. The N&W shops in Roanoke, Virginia gave all Y Class engine and tender axles roller bearings and they used the same outside frame lead truck as the Class A. The trailing truck was also equipped with roller bearings which were fit into an outside frame design. With these improvements, the Y6's cost considerably more than their earlier brethren, but the maintenance records show that these locomotives had a time available for assignment far superior to any of the predecessors.

The Y6b had a starting tractive effort in simple configuration of 152,206 pounds. In the compound mode, a tractive effort of 126,838 was achieved. The locomotives delivered 5,500 horsepower. The Y6b locomotive weight was 582,900 lbs with 522,850 lbs directly on the drivers.

When the N&W ceased their mainline steam operations in 1959, 50 of the Y6s were still running out serviceable miles in the coal fields waiting for the final order of diesels to replace them. The last of the Class Ys were retired in the summer of 1960.

In 2022, Broadway Limited is building our first production of the N&W Y6b in N scale. We are building five road numbers in the standard in-service paint scheme, one painted but unlettered and unnumbered model, and two models painted in fantasy paint schemes. The fantasy schemes are adaptations of prototypical N&W paint schemes, that were never applied to the Y6bs in real life, but look beautiful on the models.

Industry-leading Model Features:

ALL-NEW Paragon4 Sound & Control System featuring Rolling Thunder
Integral Dual-Mode Decoder with Back EMF for Superb Slow Speed Operation in DC and DCC
Precision Drive Mechanism engineered for continuous heavy load towing and smooth slow speed operation
Extra Built-in Capacitance for more Consistent Elecrical Pick-up
Die Cast Locomotive Body with Die Cast Chassis for Heavier Weight and Maximum Tractive Effort
Rubber Tires for Additional Tractive Effort
Premium Caliber Painting with Prototypically Accurate Paint Schemes and Road Numbers
Prototypical Light Operation with Separately Controllable Headlight, Rear Light, and Cab Light
Many Separately Applied Details such as Handrails, Ladders, Piping, Whistle, and Bell
Operating Microtrains-compatible Couplers
Will Operate on Code 55, Code 70, and Code 80 Rail
Minimum Operating Radius: 9.75 inches
Accurate Prototypical Sounds for the N&W Y6b 2-8-8-2 Engines

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI's own integral DCC Decoder factory installed. Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited's Paragon3 Series models.

Paragon4 Sound & Control System Features:

Operates in DC & DCC with improved DC speed control (use DCMaster for DC Sound)
Built-In capacitor pack to navigate imperfect track
Capacitor Pack automatically disabled on program track for full compatibility with JMRI Decoder Pro
Pro Lighting Mode offers individual control of all lights on model
Switcher Mode for precise low speed control.
Record & Play Operation - Records and plays back sounds and movements once or repeatedly for automatic operation
High Resolution Audio
Quillable Whistle for various whistle lengths and patterns
Choice of 3 selectable Horns
Alternate Whistle / Horn where applicable for locomotive with air horn and steam whistle - both the main whistle and alternate can be easily played
Adjustable bell ringing interval for faster or slower bell
Numerous user-mappable functions with available keys
Johnson Bar Sound at Direction Change
Multiple realistic passenger and crew sounds play on command
Grade Crossing Automatic Signal
Automatic Forward / Reverse Signal - When activated, stopping triggers and stop whistle toot. When moving forward from a stopped position, toots twice. When moving in reverse. toots three times.
Chuff sound intensity varies with load
Individually adjustable sound volumes for each effect
EZ Reset Button for quick return to factory default settings

**Specifications on this page subject to change.

New Page 1

Price

Collections

Paragon4 EMD NW2 Switchers, N

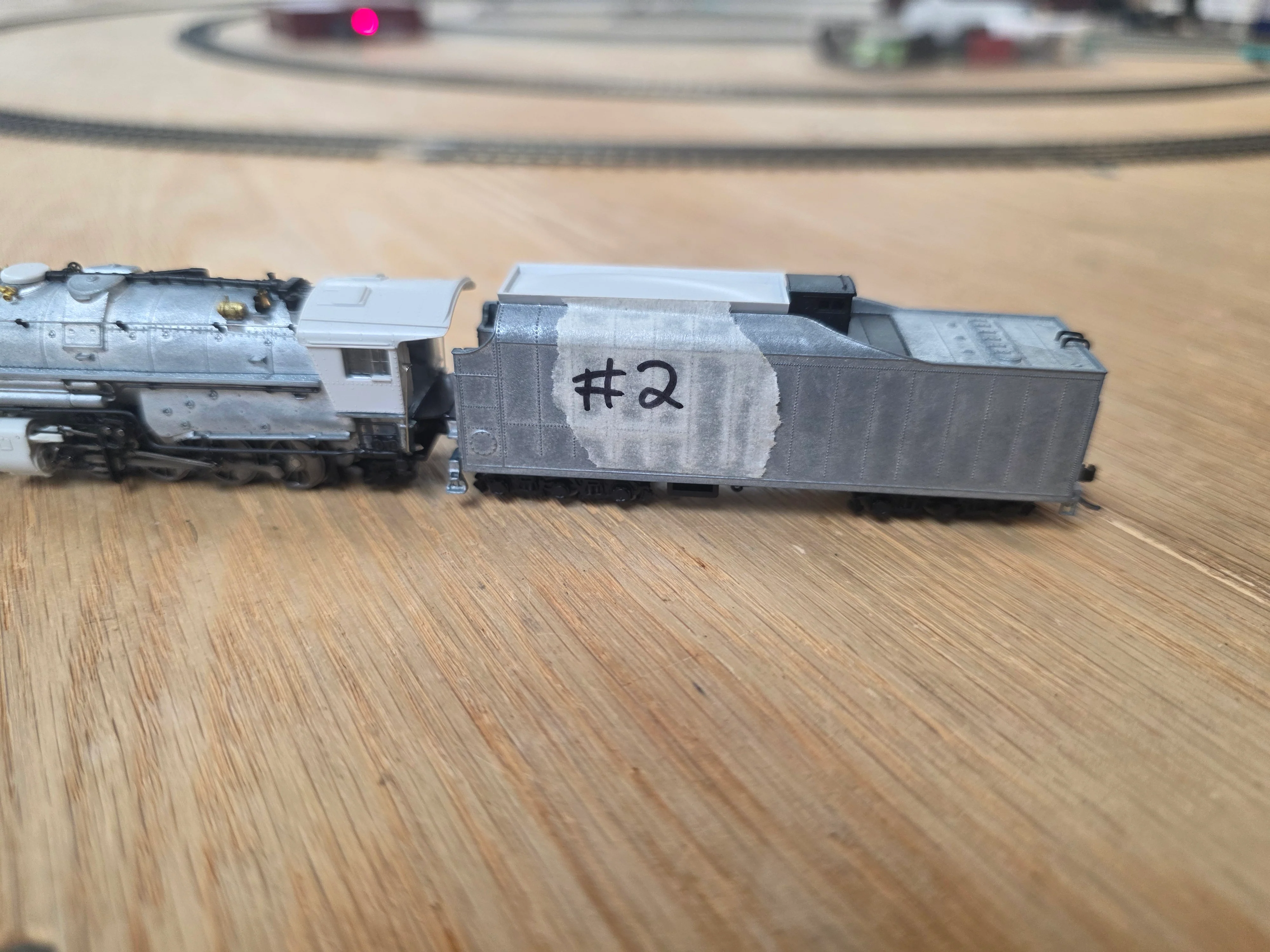

***(PRE PRODUCTION SAMPLE)*** (SEE PHOTO, SOLD AS IS)*** PPSR7225 N&W Y6b 2-8-8-2, Unlettered, 22I tender, Paragon4 Sound/DC/DCC, N
